New version of AUI meta-model

From: Dave Raggett <dsr@w3.org>
Date: Mon, 29 Oct 2012 13:15:42 +0000
Message-ID: <508E817E.3050603@w3.org>
To: public-mbui@w3.org
Jean writes:

According to our last audioconference, please find enclosed the last version
of the AUI meta-model
- in Visual Paradigm 8.0 for Entreprise format (original file)
- in JPG format as images
- exported in XMI V2.1 for Paolo in case his V10.0 is not backward
compatible.

I also integrated the following comments:
- the notion of packages: meta-models are now distributed in respective
packages, the UICommons being the main package
- the package ConfigurationModel captures model information over the various
versions, based on Sebastian comments in the Google doc
- the dependencies between the packages are also included
- ...

I experienced some trouble with some inheritance relationship. So, don't
worry if there is one missing. I still wanted to send this version for
tomorrow.

Dave: the attachments were too large for the mailing list, so I have
uploaded them manually to the W3C site:

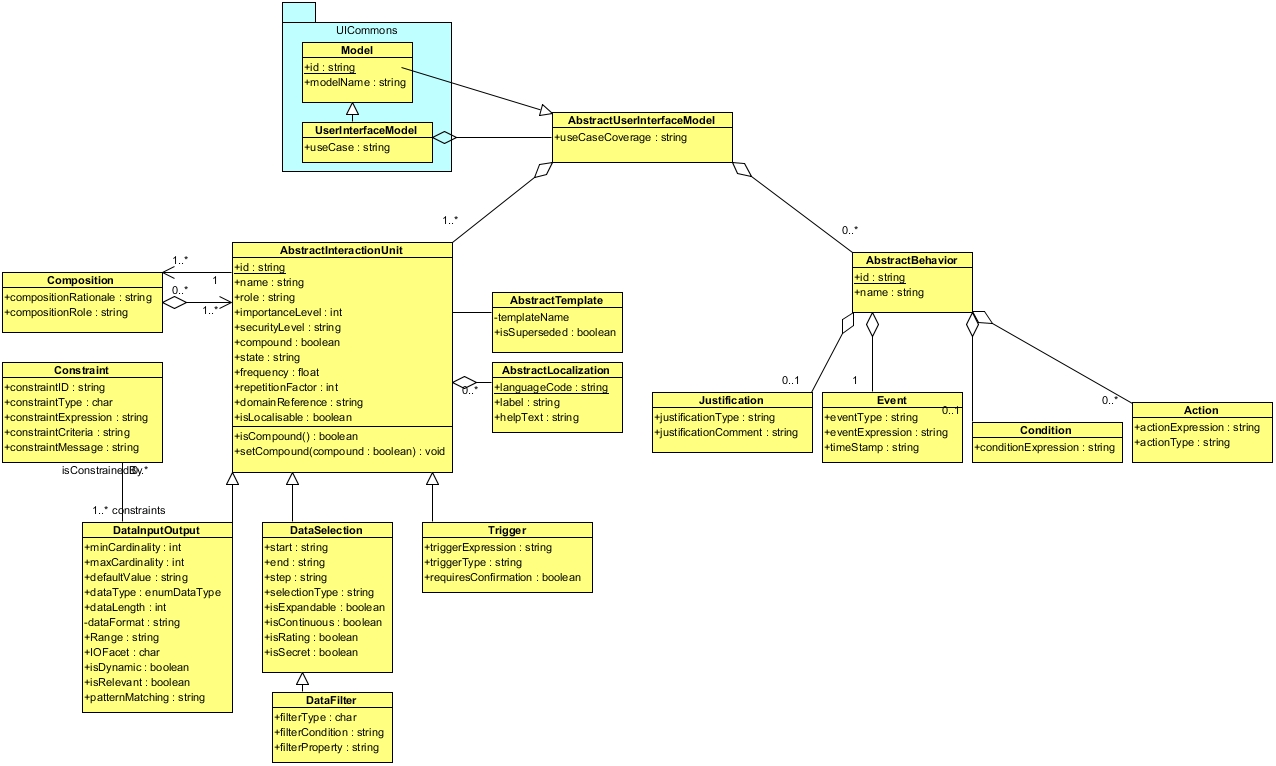

http://www.w3.org/2012/10/aui-meta-model/Abstract%20User%20Interface%20Meta%20Model.jpg

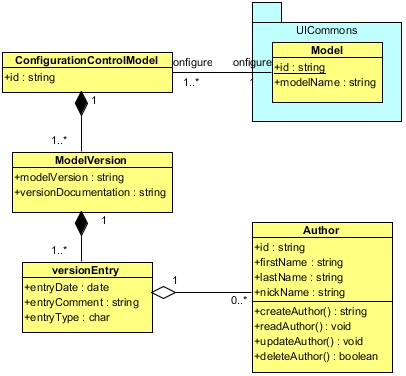

http://www.w3.org/2012/10/aui-meta-model/Configuration%20Control%20Meta%20Model.jpg
http://www.w3.org/2012/10/aui-meta-model/Main%20Package%20Diagram.jpg

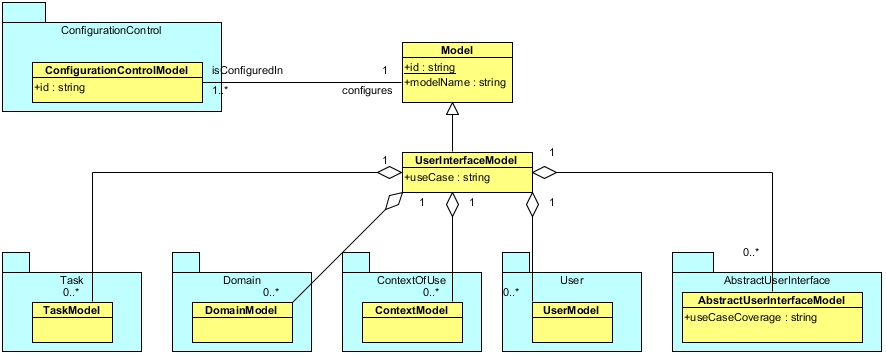

http://www.w3.org/2012/10/aui-meta-model/User%20Interface%20Model%20Commons.jpg
http://www.w3.org/2012/10/aui-meta-model/User%20Meta%20Model.jpg
http://www.w3.org/2012/10/aui-meta-model/W3C-MainPackages-Export.xmi
http://www.w3.org/2012/10/aui-meta-model/W3C-MainPackages.vpp

-- Dave Raggett <dsr@w3.org> http://www.w3.org/People/Raggett
