Hi SVG WG,

As per ACTION-2900 [1] which relates to ISSUE-2335 [2], I investigated support for the bias attribute in feConvolveMatrix.

I ran two test files (filters-convolvematrix-01.svg [3*] and filters-convolvematrix-02.svg [4*]) over the currently specified algorithm and my interpretation of Jasper's (Option 2 as specified in the issue) algorithm.

---

Current feConvolveMatrix algorithm:
cR = (cO (*) kernel)/divisor + bias
aR = (aO (*) kernal)/divisor + bias

Where:
(*) = convolution
cO = original colour channels
aO = original alpha channel

----

My interpretation of Jasper's feConvolveMatrix algorithm:
aR = (aO (*) (kernel/divisor)) + bias
cR = (cO (*) (kernel/divisor)) + bias*aR

Where:
(*) = convolution
cO = original colour channels
aO = original alpha channel

Note that the divisor is applied to the kernel for each kernel iteration as opposed to what is currently specified where the divisor is applied after the kernel has modified an area of the image.

---

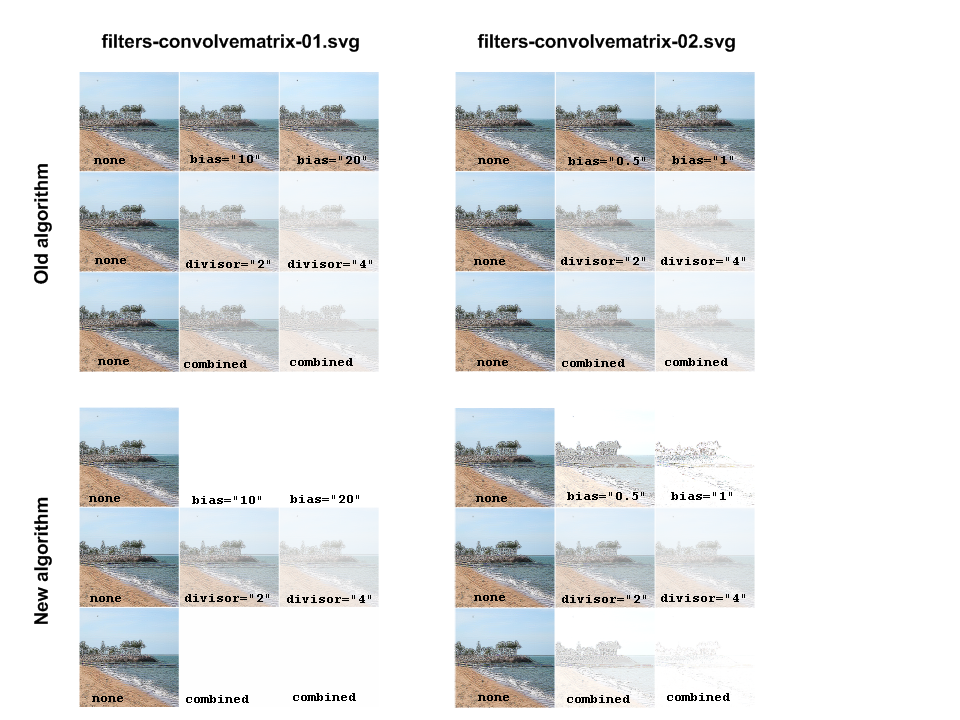

The results from the above test are on the wiki [5]. The top two 3x3 grids in the results were generated with the old algorithm and the bottom two 3x3 grids where generated using the new algorithm.


I ran the same tests over Opera, Firefox and Batik to see how they implemented the algorithm for feConvolveMatrix.
 - Batik: Completely failed to render and gave no error message as to why
 - Opera: Images rendered but seemed a bit too light
 - Firefox: Images rendered pretty close to my interpretation of Jaspers algorithm
 - Chrome: Images rendered but seemed to be very different to that produced by Opera and Firefox


Given that all the results I've seen so far vary, we should probably just decide on which algorithm to use at the telcon tomorrow and put that in the specification. I have no strong opinions, but for the record I do like the output produced by Jasper's algorithm and Firefox's algorithm.

Cheers,
Anthony


[1] http://www.w3.org/Graphics/SVG/WG/track/actions/2900

[2] http://www.w3.org/Graphics/SVG/WG/track/issues/2335

[3*] http://www.w3.org/Graphics/SVG/WG/wiki/images/2/27/Filters-convolvematrix-01.svg

[4*] http://www.w3.org/Graphics/SVG/WG/wiki/images/5/52/Filters-convolvematrix-02.svg

[5] http://www.w3.org/Graphics/SVG/WG/wiki/images/3/3f/FeConvolveMatrix-test-results.png


* These tests require an additional file to run:
http://www.w3.org/Graphics/SVG/WG/wiki/images/9/9d/Townsville.jpg
